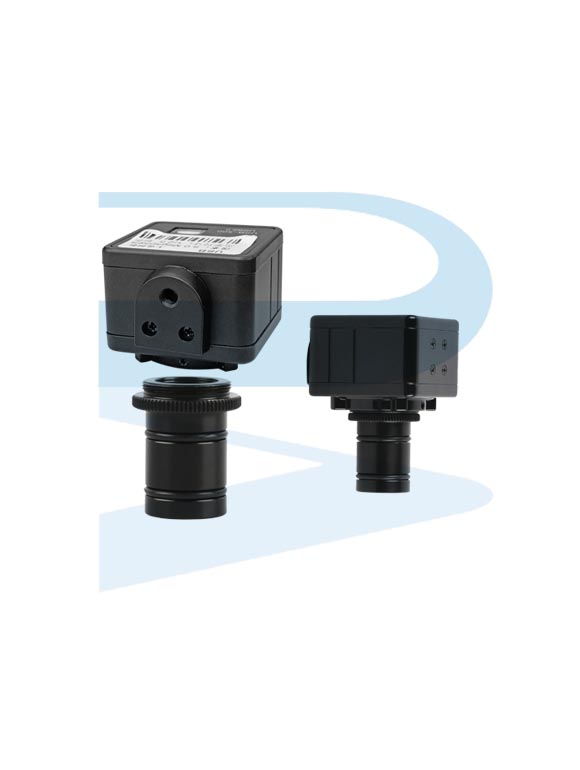

Microscope Eyepiece Electronic 5MP, C-Mount interface w/23.2 adaptor
- Convenient to take pictures, record videos and save data.
- USB 2.0 to computer
- Standard C-Mount interface. Also fit to 23.2mm mounting size by using C-Mount to 23.2mm Adaptor.
|
Specification |
| Code |
A1658 |
| Image Sensor |
1/2.5”Colour 5MP CMOS image sensor |
| Pixel Size |
2.2μm×2.2μm |
| Spectral Response |
400nm～1000nm |
| Sensitivity |
0.53V/lux-sec@550nm |
| Scan Method |
Progressive Scan |
| Exposure Method |
Electronic shutter |
| Image Resolution |
2592×1944 |
| Frame Rate |
4.5fps@2592×1944 QSXGA |
| 7fps@2048×1536 QXGA |
| 10fps@1600×1200 UXGA |
| 14fps@1280×1024 SXGA |
| 21fps@1024×768 XGA |
| 30fps@800×600 SVGA |
| 35fps@640×480 VGA |
| White Balance |
Auto/Manual |
| Exposure Control |
Auto |
| Image Output |
USB2.0，480Mb/s |
| Power |
USB2.0 |
| Dynamic Range |
66.5dB |
| Package included |
Eyepiece Electronic, C-Mount to 23.2mm Adaptor, USB cable, software CD |
