| Specification | |||

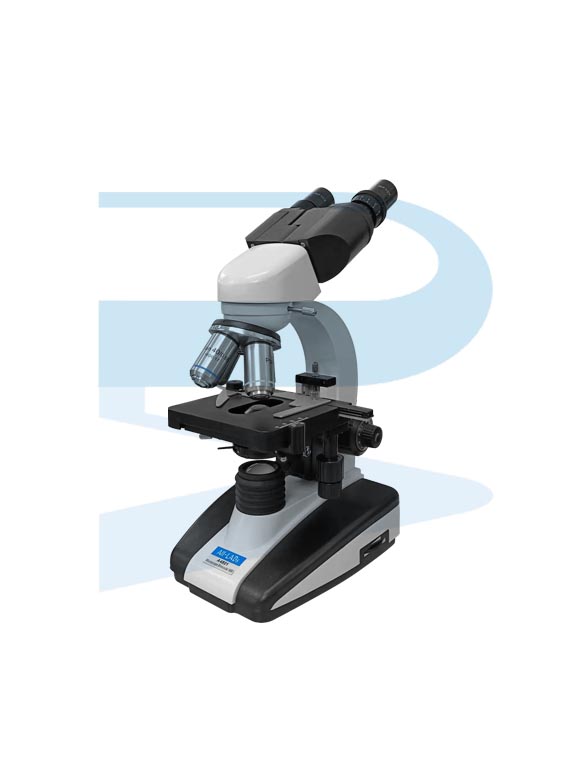

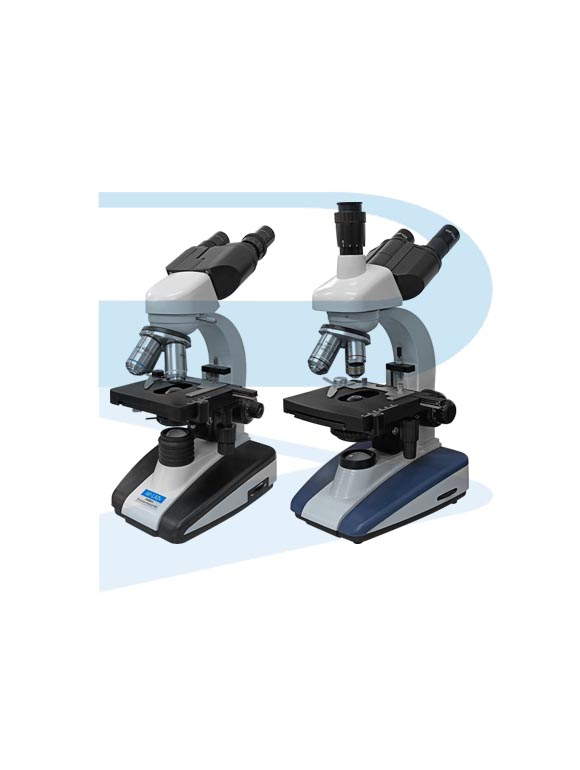

| Code | A4801 | A5173 | |
| Model | MB1 | MB1-ST | |
| Total Magnification | 40X~1000X | ● | ● |
| Head | Seidentopf Binocular 45º inclined 360º Rotatable | ● | |
| Seidentopf Binocular 45º inclined 360º Rotatable with Phototube | ● | ||
| Objective | PLAN Achromatic 4X, 10X, 40X (Spring), 100X (Spring, Oil) | ● | ● |
| Nosepiece | Quadruple Revolving Nosepiece | ● | ● |
| Focusing | Coaxial Coarse and Fine Focus Adjustment, Focusing Range 20mm | ● | ● |
| Condenser | Abbe Condenser N.A.1.25 with Iris Diaphragm, with Filter Holder | ● | ● |
| Stage | Double Layer Mechanical Stage 120x125mm | ● | ● |
| Illumination | 3W LED Brightness Adjustment | ● | ● |
| Power | 110/240V AC Power Supply, UK Plug | ● | ● |
| Product Dimension | L170xW230xH370mm | L170xW230xH380mm | |
