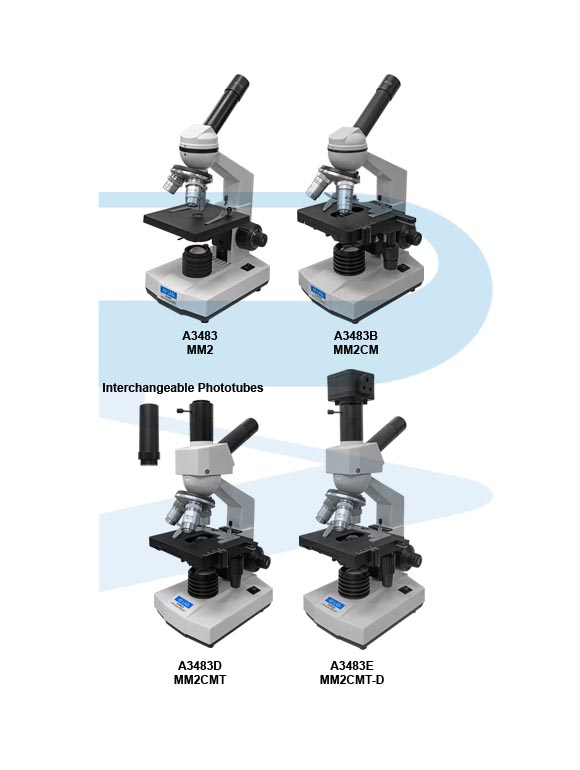

Microscope Monocular MM2 Series (400X), All-LABs

The MM2 Series have high degree of standardization, nice appearance, and the feature about rational structure, easy to use, clarity of visual field and quality stability. Widely used in research and teaching
For A3483D, the interchangeable Phototubes accepts an additional eyepiece or microscope camera attachments C-mount thread 25mm in order to view, livestream, record, and capture magnified specimen images.

Specification
Code		A3483	A3483B	A3483D	A3483E
Model		MM2	MM2CM	MM2CMT	MM2CMT-D
Total Magnification	40X~400X	●	●	●	●
Head	Monocular 45° inclined 360º Rotatable	●	●
	Monocular 45° inclined 360º Rotatable with Phototube			●
	Monocular 45° inclined 360º Rotatable with Phototube & Digital Eyepiece 5MP				●
Eyepiece	WF10X	●	●	●	●
Objective	Achromatic 4X, 10X, 40X (Spring)	●	●	●	●
Nosepiece	Triple Revolving Nosepiece	●	●	●	●
Focusing	Coaxial Coarse and Fine Focus Adjustment, Focal range:20mm	●	●	●	●
Condenser	Abbe Condenser N.A.1.25 with Iris Diaphragm, with Filter Holder, Filter dia.32mm	●	●	●	●
Stage	Plain Stage 120x110mm with Slide Clips (with moving scale (optional))	●
Stage	Double Layer Mechanical Stage 125x115mm		●	●	●
Illumination	LED Lamp 1W Brightness Adjustment	●	●	●	●
Power	110/240V AC Power Supply, UK Plug	●	●	●	●
Product Dimension		L130xW185xH350mm	L130xW185xH350mm	L165xW185xH350mm	L165xW185xH385mm
