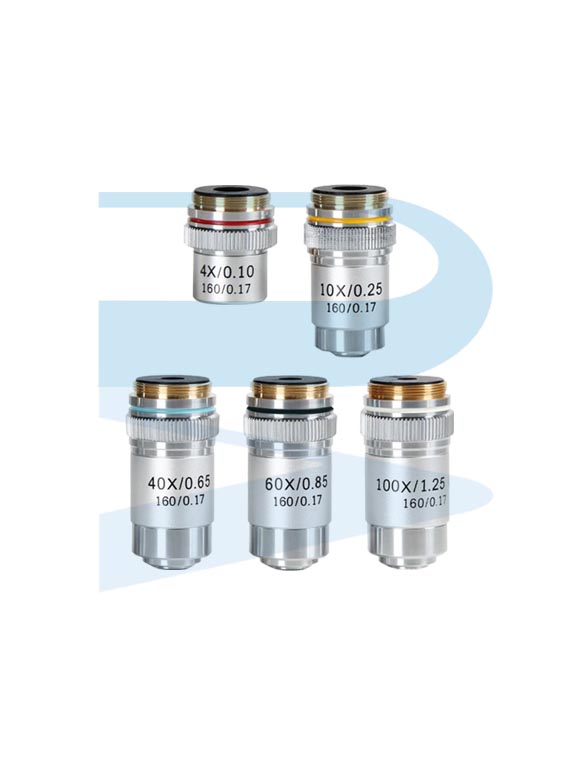

Microscope Achromatic Objective for Model MM2/MM3/MB1/506-F
| Code |
Corrections |
Magnification |
Numerical Aperture |
Working Distance |
Cover Glass Thickness |
Mechanical Tube Length |
Nosecone |
Immersion Medium |
Mounting Thread |
Core Material |
| A1535 |
Achromatic |
4X |
0.10 |
18mm |
0.17mm |
160mm |
Fixed |
— |
RMS 20.32mm |
Copper |
| A1536 |
Achromatic |
10X |
0.25 |
7mm |
0.17mm |
160mm |
Fixed |
— |
RMS 20.32mm |
Copper |
| A1407 |
Achromatic |
40X |
0.65 |
0.53mm |
0.17mm |
160mm |
Spring |
— |
RMS 20.32mm |
Copper |
| A3868 |
Achromatic |
60X |
0.85 |
0.18mm |
0.17mm |
160mm |
Spring |
— |
RMS 20.32mm |
Copper |
| A4902 |
Achromatic |
100X |
1.25 |
0.13mm |
0.17mm |
160mm |
Spring |
Oil |
RMS 20.32mm |
Copper |
